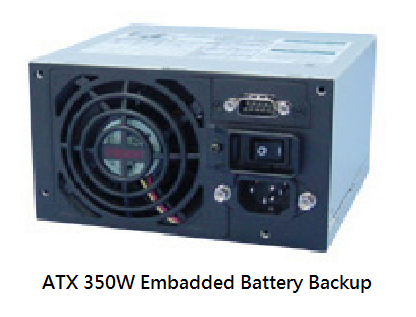

ATX 350W with Battery Backup function

Production information

350W Nonstop Power Supply (RS232C signal type)
Long-life Design of 10 Years at 45 deg. C









-Backup function protects PCs at blackout
-Independent voltage-stabilizing circuit adopted in all outputs, all outputs have the minimum load of 0A, stably drives the latest high-performance CPU
-Thermo-sensing speed control fan allows for a quiet environment; variable fan speed switch dedicated to reduce heat of CPU
-Connector system is adopted to adjust to various output connectors
-Signal unit and cooling fan can be replaced

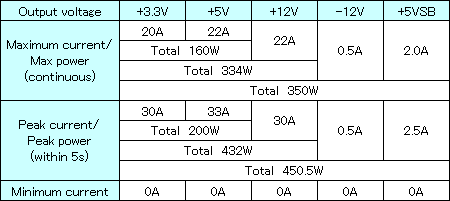

Output specification


Standard specifications
Compatible case size
PS2
Outline drawing
150Wx86Hx140D
Weight
1.80 kg typ
Input Voltage
AC
85-264V
DC
24V (Dedicated battery package only)
Efficiency
AC
73% typical at AC100V and 77% typical at AC240V
DC
73% typical at 24V DC
Power factor
99% typical at AC100V, and 97% typical at AC240V
Input changeover system
Worldwide
AC, DC input
Battery only for DC input
Safety
UL60950, CSA60950 (c-UL), EN60950, and CE marking
High frequency current regulation
Compliant with IEC61000-3-2 (Ed. 2.1) class D and EN61000-3-2(A14) class D
EMI standard
(Input feedback noise)
Compliant with VCCI class B FCC Rules class B and EN55022 class B
CE marking
Low Voltage Directive
EMS immunity
Electrostatic discharge to meet EN61000-4-2.
Radioactive radio-frequency electromagnetic fields to meet EN61000-4-3
Fast transient burst to meet EN61000-4-4
Lightning surge immunity to meeet EN61000-4-5
Immunity to conducted disturbances, Conductive radio-frequency electromagnetic field to meet EN61000-4-6
Power frequency magnetic field immunity to meet EN61000-4-8
Voltage dips and fluctuation to meet EN61000-4-11
MTBF
83,000H
Operating temperature
0 to 45 deg C with full-load and to 60 deg C with 70% of load
Leakage current
0.5mA max. at AC100V and 1mA max. at AC200V
Cooling systems
Insulation
Output ground connection
Signal unit
SU-RS (RS232C),SU-BU (Buzzer) ,SU-US2 (USB)
Warranty
Three years after delivery. However, if defects belong us, the defective unit shall be repaired or replaced at our cost.
  • AUP-520P-S20
Replace AUP-X-300 Apollo USPS


AUP-520P-S20
Replace AUP-X-300 Apollo USPS
