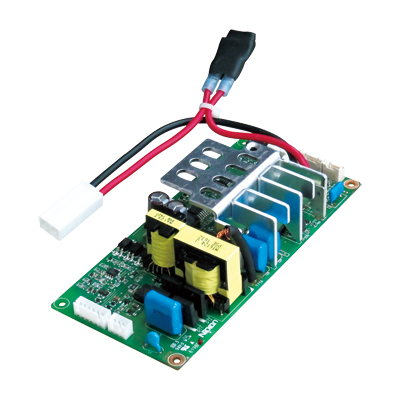

BS27A-P350/12V


100W Backup/Charging/Communication board for Open frame PSU by 12V Lead-Acid battery

This product is 100W Backup/Charging/Communication board for Open Frame PSU by 12V Lead-Acid battery which enables blackout backup operation of power supply unit with various signals as standard.

Continuous: 100W(natural air cooling) / 150W(forced air cooling) / Peak: 200W
Charge capacity 13.6V / 0.5A typ (constant voltage constant current trickle type)

Compatible power supply
UZP-120 Series
UZP-220 Series

Recommended battery
CSB, GS, Yuasa : 12V2.3Ah
CSB, GS, Yuasa : 12V5.0Ah

Standard, specifications:
Compatible case size Other
Outline drawing 73Wx38Hx158D
Weight 0.2 kg typ
Applied battery Lead Acid Maintenance Free
Nominal battery power voltage 10.5~14.0VDC
Rating capacity 2.3Ah~5.0Ah
Built in fuse rating Fuse is built in the battery package for safety. The fuse blows when foreing materials such as metals touch between terminals to shut down the circuit.
Operating temperature 0-40 deg.C/20-90%
Storage temperature/humidity -15deg.C-40deg.C/20-90%
Warranty One year after delivery; if defects belong to us, the defective unit shall be repaired or replaced at our cost.
