UDP-240-A24-T00-B
Production information

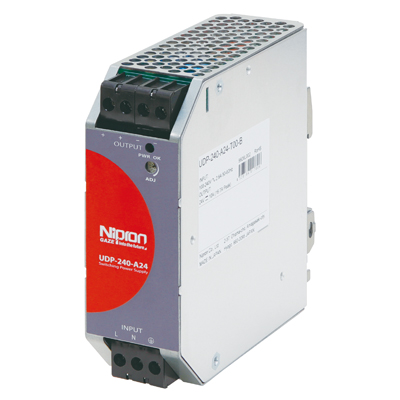

High efficiency DIN rail mount compatible PSU (Terminal connector type)
- The built-in arrestor to avoid/mitigate the risk of lightning damage
- The thin module design enables miniaturization of controlpanels to save space
- Supports approx. 1.7 times higher peak load The product supports 10 second output of peak power,which makes it optimum for devices involving an inrush current, such as motors.
- Adoption of push-in terminals to reduce the burden of man-hour
- Reduction of noise filters possible The power supply unit clears VCCI ClassB for the conducted emission
- EN62477-1 OVCIII compliant design
- Notification of service life expiration supported (optional)
Output specification
Standard, specifications: For standard and specifications, click each item.
| Compatible case size | Other | |
| Outline drawing | 41Wx124Hx117.5D | |
| Weight | 0.7 kg typ | |
| Input Voltage | AC | 85-264V |
| Efficiency | AC | 92% typ(AC100V)/94% typ(AC230V) |
| Power factor | 99%min(AC115V)/91%min(AC230V) | |
| Input changeover system | Worldwide | |
| Safety | UL62368,CSA62368(c-UL),UL508 PSE(Ordinance item 2) Compliant CE marking |
|
| High frequency current regulation | IEC61000-3-2 (ed.2.1) class D EN61000-3-2 (A14) class D compliant | |
| EMI standard (Input feedback noise) |
VCCI/FCC/CISPR32/EN55032 Class B compliant | |
| CE marking | Low voltage and EMI directive and RoHS2.0 | |
| EMS immunity | Electrostatic discharge: EN61000-4-2 compliant Radiate, radio frequency electromagnetic fields: EN61000-4-3 compliant Fast transient burst: EN61000-4-4 compliant Lightning surge: EN61000-4-5 compliant Conductive radio frequency electromagnetic fields: EN61000-4-6 compliant Power source frequency magnetic immunity: EN61000-4-8 compliant Voltage dips and fluctuation: EN61000-4-11 compliant |
|
| MTBF |  |
|
| Operating temperature | -20 to 70 deg.C | |
| Leakage current | |
|
| Cooling systems | Air-cooling without blower | |
| Insulation | AC input - DC output AC1.5kV for 1 minute,AC input - FG AC1kV for 1 minute, DC output - FG AC500V for 1 minute, | |
| Output ground connection | Capacitor ground | |
| Warranty | Three years after delivery | |
