PA1015 ITE 62368 Wall Mount Power Adapter
  • Low Ripple/Noise
  • Over-Voltage Protection
  • Over-Current Protection
  • Short-circuit Protection
  • LVD authentication
  • Limited Power Sources(LPS)
  • DoE VI and CoC Tier 2 VI Efficiency Regulations Compliance
  • FCC Part15 CLASS B, Compliance, Cispr 22 CLASS B,VCCI CLASS B
  • MTBF Above 50000 HRS At 25℃
  • 100%Burn-in under (45℃)
  • 100%Hi-pot & ATE(Chroma)Tested


Model No

PA1015-XYZ

Part No

PA1015-030YZ~ PA1015-070YZ

PA1015-071YZ~ PA1015-089YZ

PA1015-090YZ~ PA1015-149YZ

PA1015-150YZ~ PA1015-300YZ

PA1015-301YZ~ PA1015-420YZ

PA1015-480YZ~ PA1015-570YZ

PA1015-120Y200

Item

Output Voltage(DC)

3.0~7.0V

7.1~8.9V

9.0~14.9V

15~30V

30.1~42V

48~57V

12V

Output Current(Max )

0~3.0A

0~2.14A

0~2A

0~2.0A

0~0.5A

0~0.375A

2.0A

Output Power

15W

15W

18W

18W

18W

18W

24W

Input Votage

AC90~264V

Input Frequency

47~63Hz

Input Current

0.4A Maximum

Inrush Current

40A Maximum

Line Regulation

1% Maximum

Ripple&Noise

1% Maximum

Load Regulation

5% Maximum

Efficiency

DOE VI & COC Tr2

EMC(EMI/EMS)

CE,FCC,VCCI,C-Tick,KCC

Safety Standard

CB, ,GS,LVD,BSMI,KC,RCM,SAA,BIS,CCC,PSE,UL,IRAM

Operating Temperature

0~40℃

Over-Voltage Protection

Auto Recovery

Storage Temperature

-20~85℃

Short-circuit Protection

Auto Recovery

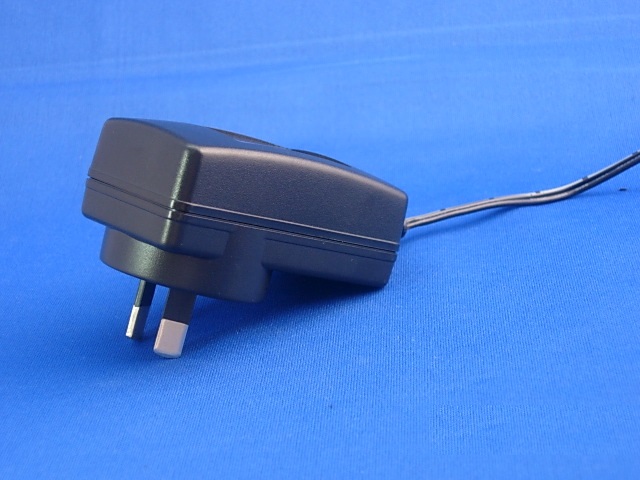

PA1015-DAB Wall Mount 62368 Power Adapter

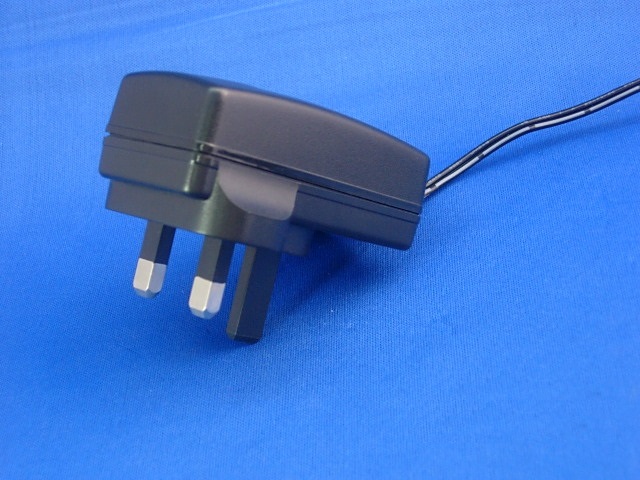

PA1015-DBB Wall Mount 62368 Power Adapter

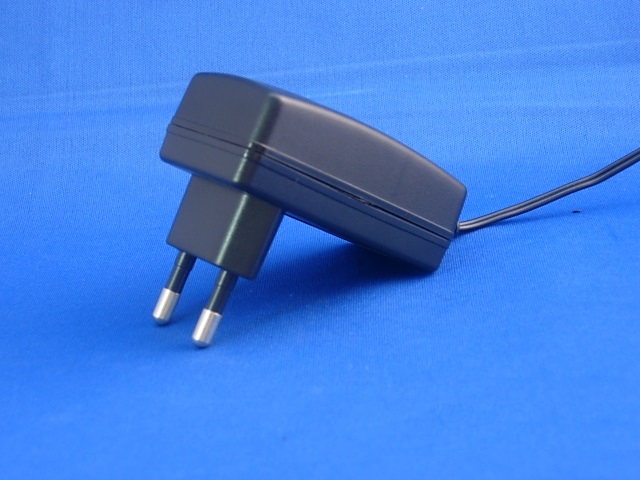

PA1015-DEB Wall Mount 62368 Power Adapter

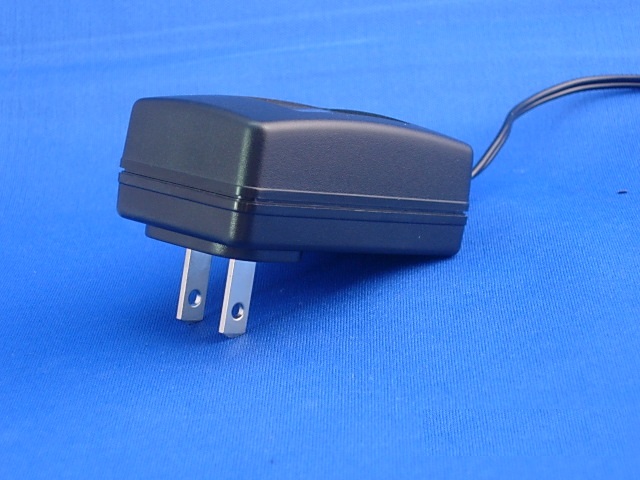

PA1015-DUB Wall Mount 62368 Power Adapter

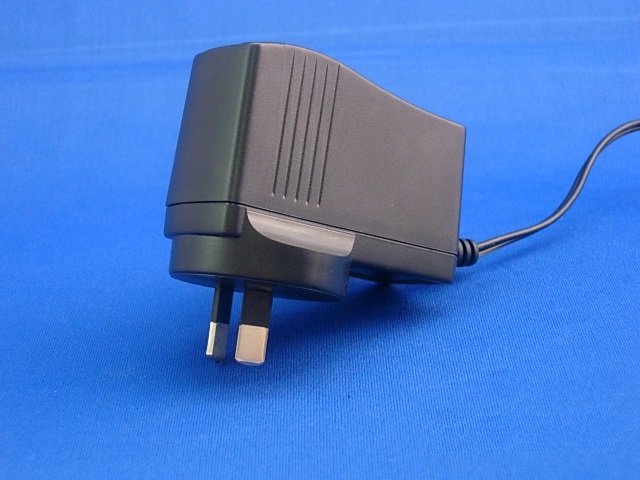

PA1015-HAB Wall Mount 62368 Power Adapter

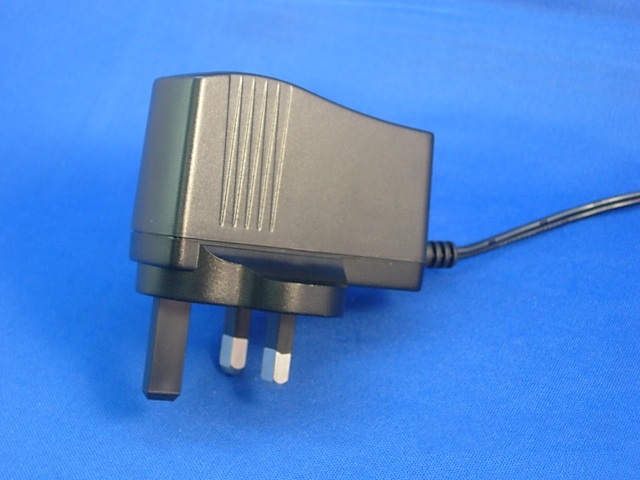

PA1015-HBB Wall Mount 62368 Power Adapter

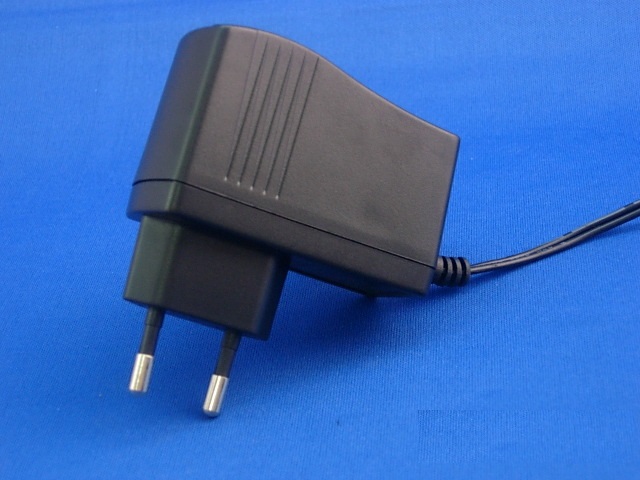

PA1015-HEB Wall Mount 62368 Power Adapter

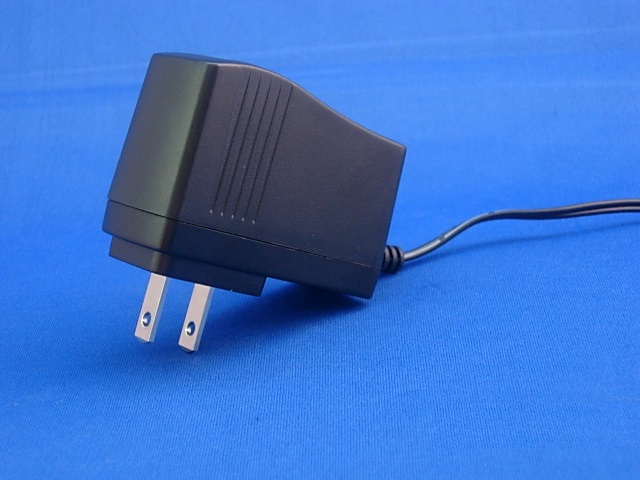

PA1015-HUB Wall Mount 62368 Power Adapter
