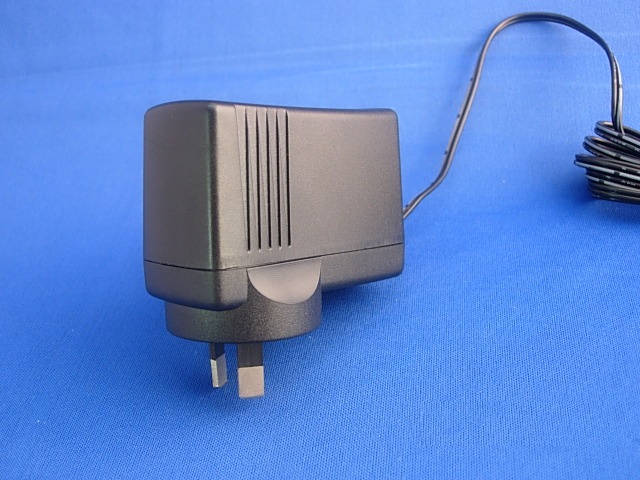

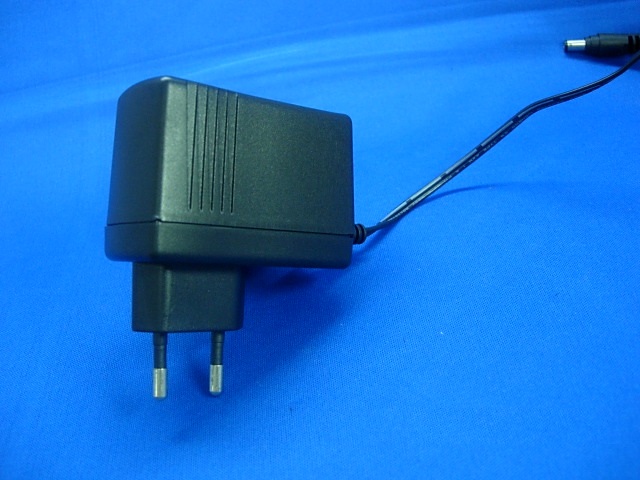

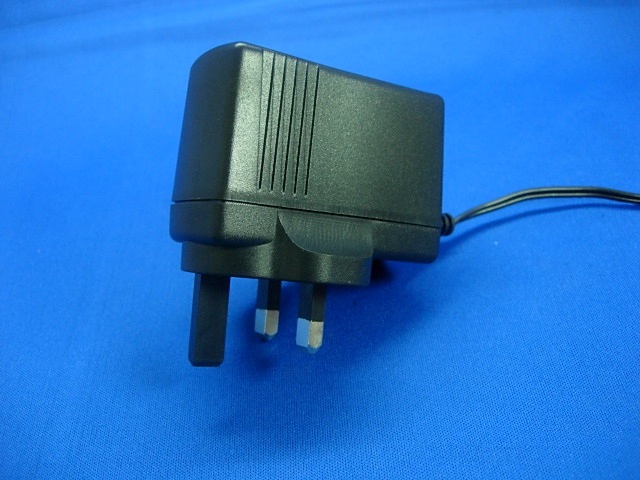

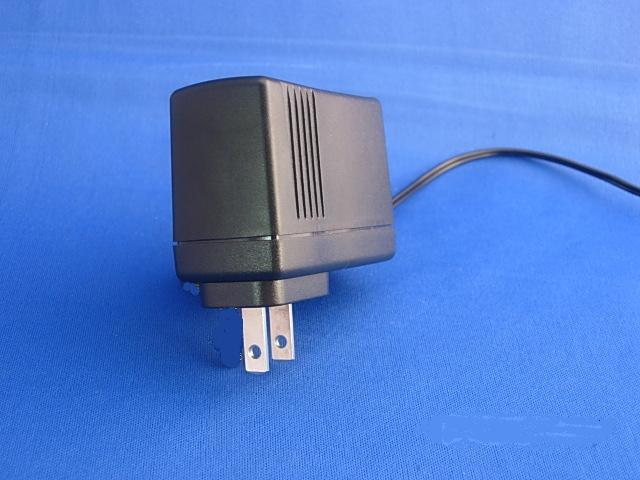

PA1024 ITE 62368 Wall Mount Power Adapter
- Low Ripple/Noise
- Over-Voltage Protection
- Over-Current Protection
- Short-circuit Protection
- LVD authentication
- Limited Power Sources(LPS)
- DoE VI and CoC Tier 2 VI Efficiency Regulations Compliance
- FCC Part15 CLASS B, Compliance Cispr 22 CLASS B,VCCI CLASS B
- MTBF Above 50000 HRS At 25℃
- 100%Burn-in under (45℃)
- 100%Hi-pot & ATE(Chroma)Tested
|
Model No |
PA1024-XYZ |
|||||
|
Part No |
PA1024-030YZ~ PA1024-070 YZ |
PA1024-071YZ~ PA1024-150YZ |
PA1024-151YZ~ PA1024-300YZ |
PA1024-301YZ~ PA1024-570YZ |
||
|
Item |
||||||
|
Output Voltage |
3.0-7.0V |
7.1-15.0V |
15.1-30.0V |
30.1-57.0V |
||
|
Output Current(Max ) |
0-4.0A |
0-4.0A |
0-1.98A |
0-0.99A |
||
|
Output Power |
28W |
30W |
30W |
30W |
||
|
Input Votage |
AC90~264V |
Input Frequency |
47~63Hz |
|||
|
Input Current |
0.6A Maximum |
Inrush Current |
60A Maximum |
|||
|
Line Regulation |
1% Maximum |
Ripple&Noise |
1% Maximum |
|||
|
Load Regulation |
5% Maximum |
Efficiency |
DOE VI & COC Tr2 |
|||
|
EMC(EMI/EMS) |
CE,FCC,VCCI,C-Tick,KCC |
|||||
|
Safety Standard |
CB, GS,LVD,BSMI,KC,RCM,SAA,BIS,CCC,PSE,UL,IRAM |
|||||
|
Operating Temperature |
0~40℃ |
Over-Voltage Protection |
Auto Recovery |
|||
|
Storage Temperature |
-20~85℃ |
Short-circuit Protection |
Auto Recovery |
|||
